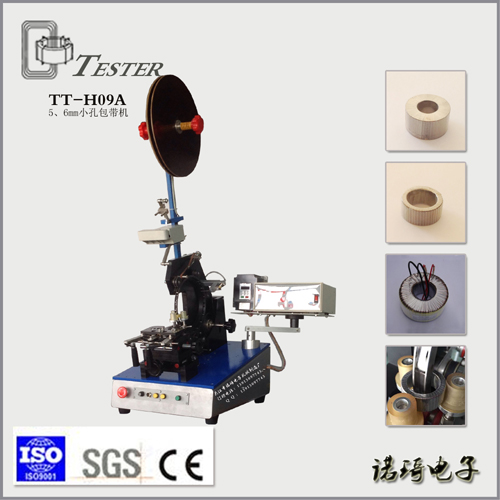

TT-H09A-X2

機器型號Machine Type	TT-H09A-X2
適用帶寬Tape width(mm)	5 6
包帶環內徑ID of tape roll(mm)	206
帶材Tape material	Mylar
最小完成內徑MIN.FIN I.D.(mm)	14
適用外徑COIL O.D..(mm)	50
最高轉速MaxSpeed(rpm)	200r/min
主軸馬達Main Motor	AC,0.75KW
排線馬達Spreading Motor	DC 4A/Stepping Motor
凈重Net Weight(kg)	72
尺寸Dimensions L×W×H(mm)	6006501180
本公司可根據客戶需求，設計各種型號規格的繞線機產品，以配合各種線圈的繞制需求。 We can customize the winding machine according to your special requirement.
