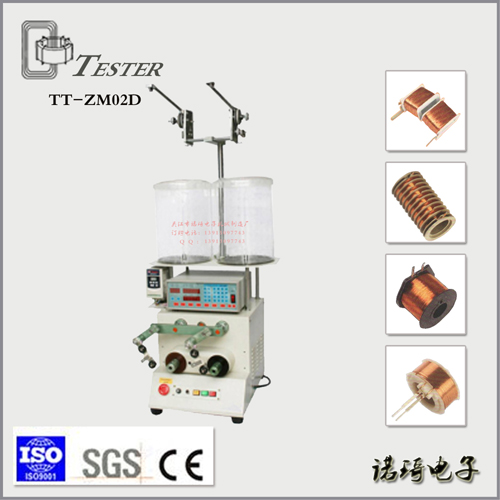

TT-ZM02D

機器型號Machine Type	TT-ZM02D
適用線徑Wire Size(mm)	0.1-0.6
繞線幅寬Rotating diameter(mm)	150
排線幅寬Wire arranging itinerary(mm)	95
控制方式Control	CNC Digital control, Frequency inverter drive
最高轉速MaxSpeed	6000 rpm
排線間距Wire Spacing(mm)	0.001-99.999
主軸馬達Main Motor	AC,0.37KW
排線馬達Spreading Motor	DC 1.2A/Stepping Motor
凈重Net Weight(kg)	50
尺寸Dimensions L×W×H(mm)	5006001200
本公司可根據客戶需求，設計各種型號規格的繞線機產品，以配合各種線圈的繞制需求。 We can customize the winding machine according to your special requirement.
